Borosilicate Glass is essential for sight glass observation windows because it offers a unique combination of extremely low thermal expansion, exceptional chemical resistance, and high mechanical stability. These properties ensure that a Borosilicate Sight Glass can withstand rapid temperature fluctuations and aggressive corrosive environments that would cause standard soda-lime glass to crack or degrade, thereby maintaining system integrity and long-term optical clarity.
As industries move toward more demanding production cycles and stringent safety protocols, the selection of viewing materials has shifted heavily toward borosilicate formulations. This article explores the technical foundations that make this material the industry standard, analyzing its thermal, chemical, and mechanical advantages in depth. By understanding these core principles, engineers and procurement specialists can ensure they are utilizing the most reliable components for their specific industrial applications.
Section | Summary |
Why Borosilicate Glass Is Essential | An overview of why borosilicate is the preferred material for industrial monitoring due to its specialized composition and reliability in extreme conditions. |
Superior Thermal Resistance | Detailed analysis of the low coefficient of thermal expansion and how it prevents thermal shock in high-heat environments. |
Chemical Durability and Corrosion Resistance | Examination of the glass's ability to resist acid and alkaline attacks, ensuring long-term transparency in reactive systems. |
Mechanical Strength and Pressure Capability | Insight into the structural integrity of the material under high PSI and its role in pressure vessel safety. |
Optical Clarity and Consistency | Discussion on the importance of maintaining a clear view for accurate process monitoring over extended periods of use. |
Borosilicate glass is essential because it is engineered with boron trioxide, which fundamentally changes its atomic structure to resist the physical stresses of industrial environments. Unlike common glass, this material does not expand or contract significantly when exposed to heat, making it the only viable choice for processes involving steam, molten liquids, or cryogenic fluids.
The primary reason for its essential status lies in the safety margin it provides. In B2B environments, downtime is expensive and accidents are unacceptable. A Borosilicate Sight Glass provides a predictable failure mode—or more accurately, a high resistance to failure—that allows operators to trust their observation ports under peak load. This reliability is built into the molecular level of the glass, where the presence of silica and boron creates a robust network.
Furthermore, the versatility of borosilicate allows it to be used across a vast spectrum of industries. From pharmaceutical cleanrooms where purity is paramount to heavy-duty chemical plants where acidity would etch other materials, borosilicate remains stable. It serves as a universal solution that simplifies inventory for maintenance teams while upgrading the safety ratings of the vessels they manage.
When considering the total cost of ownership, borosilicate windows outperform cheaper alternatives by a wide margin. While the initial investment might be higher than soda-lime glass, the extended service life and reduced risk of shattering mean fewer replacements and zero unscheduled shutdowns. For any facility looking to optimize its Steam Boiler Sight Glass performance, switching to a high-grade borosilicate option is a mandatory technical upgrade.
The superior thermal resistance of borosilicate glass is defined by its incredibly low coefficient of thermal expansion (CTE), approximately $3.3 \times 10^{-6} K^{-1}$, which allows it to withstand rapid temperature changes without fracturing. This property, often referred to as thermal shock resistance, is what separates industrial-grade viewing ports from domestic glass products.
Thermal shock occurs when a material experiences a temperature gradient between its surface and its interior. In standard glass, the heated part expands while the cool part remains static, creating internal tension that leads to a "thermal crack." Borosilicate glass, due to its boron content, expands roughly three times less than soda-lime glass. This means even if one side of a Borosilicate Sight Glass is exposed to high-pressure steam and the other to cool ambient air, the internal stress remains below the breaking point.
Borosilicate can typically operate at continuous temperatures of up to 280°C, with short-term peaks reaching 450°C if properly tempered. This makes it ideal for:
High-Pressure Steam Systems: Where temperatures fluctuate as valves open and close.
Chemical Reactors: Where exothermic reactions can cause sudden heat spikes.
Cryogenic Storage: Where materials must transition from deep-freeze to room temperature.
Glass Type | Coeff. of Expansion (per °C) | Max Operating Temp | Thermal Shock Resistance |
Soda-Lime Glass | $9.0 \times 10^{-6}$ | 150°C | Low (approx. 40°C change) |
Borosilicate Glass | $3.3 \times 10^{-6}$ | 280°C - 450°C | High (approx. 150°C change) |
Quartz Glass | $0.5 \times 10^{-6}$ | 1100°C | Extremely High |
In the context of a Steam Boiler Sight Glass, this thermal stability ensures that the glass does not fail during the "blowdown" process or during sudden cold-water injection, providing a critical layer of protection for boiler room operators.
Borosilicate glass offers a high degree of chemical neutrality, meaning it does not react with or get etched by the majority of acids, saline solutions, or organic substances it encounters in industrial processing. This chemical "stiffness" ensures that the viewing window remains transparent and structurally sound even after years of exposure to aggressive media.
In many aqueous environments, water can actually leach ions out of standard glass, a process known as hydrolytic attack. This results in a cloudy or "frosted" appearance that obscures the view. Borosilicate glass is classified as a Class 1 hydrolytic glass, the highest level of resistance possible. This makes it a staple in the pharmaceutical and food industries where contamination of the product by glass particles or ions is strictly prohibited.
While no glass is entirely immune to all chemicals (hydrofluoric acid and hot concentrated phosphoric acid being the main exceptions), borosilicate is remarkably resistant to:
Strong Acids: It maintains its surface integrity in the presence of Hydrochloric and Sulfuric acids.
Neutral Salts: Ideal for marine applications or brine processing.
Organic Solvents: It will not swell, dissolve, or cloud when exposed to alcohols, hydrocarbons, or ketones.
The most critical aspect of chemical resistance for a Borosilicate Sight Glass is the preservation of the surface finish. If a glass window is etched by chemicals, it develops micro-fissures. Under pressure, these fissures act as "stress concentrators." By resisting chemical corrosion, borosilicate maintains a smooth surface, which in turn preserves the mechanical strength of the window. This is especially vital for a Reflex Level Gauge Glass, where the prisms must remain sharp and un-corroded to correctly reflect light and indicate liquid levels.
The mechanical strength of borosilicate glass stems from its high elastic modulus and its ability to be thermally tempered, allowing it to withstand high internal pressures within tanks and piping systems. When used as a sight glass, the material is often processed to increase its compressive stress layer, making it significantly harder to break than annealed glass.
Sight glasses are often the "weakest link" in a pressure vessel. Therefore, the material used must have a predictable and high rupture strength. Borosilicate’s density and molecular structure allow it to handle significant PSI loads when the thickness is correctly calculated. Because the material is less prone to "fatigue" from thermal cycling, its mechanical strength remains consistent over thousands of pressure cycles.
In industrial settings, sight glasses are susceptible to external impacts or internal abrasion from moving particles (such as in a slurry). Borosilicate is harder than soda-lime glass on the Mohs scale, meaning it resists scratches more effectively. A scratched glass is a compromised glass; by resisting surface damage, borosilicate ensures that the observation window remains a safe barrier.
Most borosilicate observation windows undergo a tempering process. This involves heating the glass and then rapidly cooling it to create high compression on the surface.
Increased Load Capacity: Tempered borosilicate can handle 4 to 5 times the pressure of annealed glass.
Safe Fragmentation: If the glass does fail, it breaks into small, relatively blunt pieces rather than sharp shards.
Flexibility: It can slightly deform under pressure without immediate brittle failure, providing a safety buffer for the system.
Using a high-quality Borosilicate Sight Glass ensures that even in the event of a system overpressure, the observation port is not the first component to fail, protecting both the process and the environment.
Optical clarity in borosilicate glass is superior because the manufacturing process eliminates the impurities and iron oxides that give standard glass a green tint, providing a perfectly clear and undistorted view of the process. For sight glass applications, clarity is not an aesthetic choice but a functional necessity for reading gauges, observing color changes in reactions, or detecting contaminants.
Borosilicate glass typically allows over 90% of visible light to pass through. This high transparency is essential when operators need to look through thick windows (often up to 25mm or more) into dark tanks. Without the high transmission rates of a Borosilicate Sight Glass, a flashlight would be rendered ineffective by the internal absorption of the glass material itself.

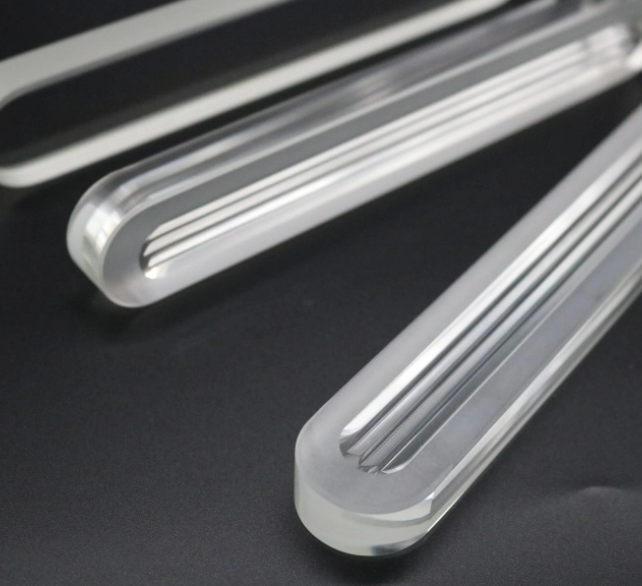

The consistent refractive index of borosilicate ensures that there is minimal distortion of the image. When monitoring a liquid level through a Reflex Level Gauge Glass, accuracy is paramount. Distortion could lead to an incorrect reading of the meniscus, resulting in tank overfills or pump dry-runs. The purity of the borosilicate melt ensures that there are no "striae" (veins) or bubbles within the glass that could bend light rays and mislead the observer.
Standard glass tends to "solarize" or turn yellow/cloudy over time when exposed to UV light or certain industrial radiations. Borosilicate is remarkably stable against such degradation.
UV Stability: Ideal for outdoor installations on oil tanks or outdoor chemical reactors.
Anti-Fouling: The smooth surface prevents the buildup of "bio-films" or chemical scales, which means the glass stays cleaner for longer periods between maintenance cycles.
Color Neutrality: Essential for titration processes or any chemical reaction where the color of the fluid indicates the stage of the process.
By maintaining its optical properties under the most grueling conditions, borosilicate ensures that the "observation" part of an observation window is never compromised. It provides the literal "clear view" required for operational excellence.
The selection of a Borosilicate Sight Glass is a technical decision that impacts every facet of industrial operations, from the safety of the floor staff to the purity of the final product. As we have explored, its essential nature is not derived from a single feature, but from the synergy of its thermal, chemical, and mechanical properties.
Whether it is the extreme thermal shock resistance required for a Steam Boiler Sight Glass or the chemical inertness needed for pharmaceutical manufacturing, borosilicate stands as the gold standard. Its ability to maintain structural integrity under high pressure while providing crystal-clear optical data makes it an irreplaceable component in modern engineering.
Investing in high-quality borosilicate observation windows is ultimately an investment in reliability. By choosing a material that resists corrosion, survives heat spikes, and withstands pressure, companies can minimize risks and focus on what matters most: efficient and safe production. For any application involving liquid level monitoring or process viewing, the choice is clear—borosilicate is the only material that meets the rigorous demands of the modern industrial landscape.
