Transparent Level Gauges: Accurate Liquid Level Monitoring

A transparent level gauge is a robust, direct-reading instrument designed to provide a clear, real-time visual indication of liquid levels within tanks, boilers, and pressure vessels by allowing an operator to look directly through a reinforced viewing window into the process media.

As industrial processes evolve toward higher pressures and more aggressive chemical environments, the selection of the correct viewing component becomes critical. This article explores the mechanics, design considerations, and operational advantages of these systems, focusing specifically on the high-performance materials required for reliable performance. By understanding how the proper selection of a durable transparent gauge glass contributes to system integrity, facility managers can significantly reduce downtime and improve maintenance outcomes.

Article Outline

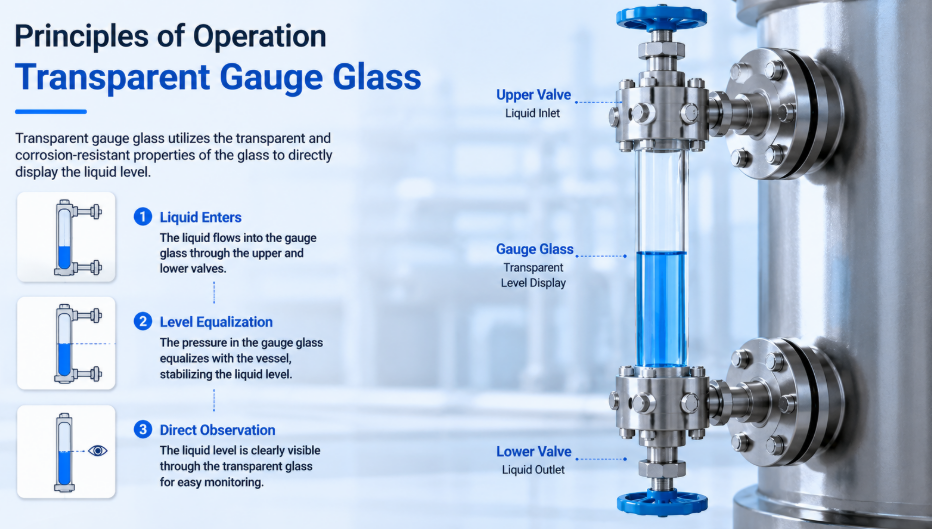

Principles of Operation

The transparent level gauge operates on the principle of communicating vessels, where the liquid level inside the gauge chamber is identical to the liquid level within the connected process vessel, providing a clear visual path through a window.

The device consists of a metal chamber containing the process fluid, which is connected to the vessel at both the top and bottom. This setup ensures that the fluid occupies the same height in both the gauge and the vessel. Because the gauge is equipped with transparent windows on both sides, or a singular clear window, an observer can see the liquid level directly. This design is particularly effective because it allows for the use of illuminators to enhance visibility, especially in dark environments or when the process fluid is clear or colorless.

Unlike reflex gauges, which use prismatic glass to create a dark/light contrast, transparent gauges allow for the installation of mica shields. This is a critical factor for steam applications, where the alkalinity of the water could etch ordinary glass over time. The fluid is contained behind the window, and the design must ensure that the pressure and temperature ratings of the hardened transparent gauge glass exceed the maximum working conditions of the vessel itself.

By maintaining a clear, direct view, these gauges eliminate the guesswork associated with remote electronic sensors. In the event of a power failure or an electronic signal drift, the transparent gauge remains as the primary source of truth for the operator. This reliability makes it an essential redundancy tool in critical infrastructure, ensuring that operators can verify levels even when automated systems might be compromised or under calibration.

Key Components and Materials

The performance of a transparent level gauge is entirely dependent on the structural integrity of its components, primarily the high-pressure sealing gaskets and the chemical-resistant transparent gauge glass that isolates the process media from the environment.

The assembly comprises the gauge body, which is usually machined from high-grade carbon or stainless steel, the glass elements, and the clamping mechanism. The glass is the most sensitive component. It must be able to withstand thermal shock, mechanical stress from clamping, and chemical corrosion. For high-pressure steam applications, standard borosilicate glass is often insufficient; instead, aluminosilicate glass or tempered borosilicate is used, frequently protected by mica plates.

When evaluating materials, engineers must consider the specific chemical composition of the media. Acids, caustics, and high-temperature steam interact differently with silica-based materials. The following table illustrates typical material considerations for gauge components:

• Body Material: Carbon Steel (Standard), 316 Stainless Steel (Corrosion resistant), Monel (Specialty chemicals).

• Sealing Gaskets: Graphite (High heat), PTFE (Chemical compatibility), CAF (Standard pressure).

• Window Material: Toughened Borosilicate (Standard), Aluminosilicate (High pressure/High temperature).

The longevity of the unit is often limited by the sealing gaskets. Over time, heat cycling causes these gaskets to lose elasticity, which can lead to leaks. Regular inspection schedules are mandatory. When selecting a replacement transparent gauge glass, it is vital to match the manufacturer's specified dimensions and pressure ratings exactly, as even a minor deviation can lead to catastrophic glass failure under load.

Advantages in Industrial Settings

Transparent level gauges offer unmatched reliability and versatility because they allow for direct visual inspection, support the use of protective shields for harsh chemicals, and provide a fail-safe observation method that does not require electricity.

One of the primary advantages is the ability to monitor the fluid characteristics in real-time. Because the operator sees the actual fluid, they can observe changes in color, clarity, or the presence of sediment, which might indicate a process problem—such as chemical degradation or contamination—before it affects downstream operations. Furthermore, the transparent design allows for the installation of secondary indicators, such as floating balls or colored liquids, which can move within the gauge to highlight the interface between two immiscible liquids, like oil and water.

• Safety: They provide a physical barrier between the operator and the hazardous media while allowing clear sight.

• Chemical Compatibility: The ability to add mica or polymer shields ensures the gauge can handle aggressive media.

• Operational Versatility: They function perfectly in extreme temperatures and pressures where electronic sensors might drift or fail.

• Maintenance: Glass can be cleaned or replaced without removing the entire chamber from the vessel.

Moreover, in the context of boiler management, the transparent gauge is the standard for water level monitoring. Because of the inherent dangers of boiler dry-out, the requirement for a direct, non-electronic visual verification is written into many international boiler codes. By utilizing a high-quality glass component, operators ensure they are meeting the highest standards of safety, effectively mitigating the risk of boiler explosions or structural damage.

Proper Installation and Maintenance

Proper installation of a transparent level gauge requires careful attention to alignment and torque specifications, while maintenance focuses on regular cleaning and the proactive replacement of glass components to prevent fatigue-related fractures.

Installation is a high-stakes task. If the gauge body is slightly twisted during the mounting process to the vessel nozzles, the glass will be subjected to uneven mechanical stress. Over time, especially when pressurized and heated, this stress will lead to sudden cracking. It is essential to ensure that the process connections are perfectly aligned and that the gauge is supported adequately to prevent vibration-induced stress.

When performing maintenance, the following checklist should be followed:

1. Isolation: Always isolate the gauge from the pressure vessel using the shut-off valves before performing any work.

2. Depressurization: Slowly bleed the remaining pressure to ensure the chamber is empty and safe to open.

3. Cleaning: Clean the glass surfaces and the interior chamber. Remove any buildup of scale or process residue that could obscure the view.

4. Inspection: Check for any signs of pitting, frosting, or micro-cracks on the glass surface. If found, discard the glass immediately.

5. Reassembly: Use new gaskets every time the gauge is disassembled. Tighten the clamping bolts in a cross-pattern to ensure even distribution of force across the glass.

Maintenance personnel should document the hours of operation for each gauge. In high-temperature or high-pressure environments, the glass undergoes constant thermal expansion and contraction. Even if the glass appears clear, it may suffer from "thermal fatigue." Replacing the glass based on a schedule, rather than waiting for failure, is a hallmark of a professional maintenance program.

Selecting the Right Gauge Glass

Selecting the correct gauge glass involves verifying the temperature and pressure limits of the specific glass type, ensuring it is chemically compatible with the process media, and confirming it meets the dimensional requirements of the existing gauge body.

There is no "one-size-fits-all" solution. For example, a glass rated for a low-pressure water tank will shatter instantly if installed on a high-pressure steam boiler. The manufacturer’s data sheet for the glass should specify the maximum pressure at a given temperature. If the process is cyclic (heating and cooling), the glass must be specifically rated for thermal shock resistance.

When ordering, always verify the following parameters:

• Pressure Rating: Ensure the glass exceeds the maximum allowable working pressure (MAWP) of the vessel.

• Temperature Rating: Confirm that the glass maintains its mechanical properties at the peak operating temperature of the process.

• Dimensions: Accurate measurement of length, width, and thickness is non-negotiable. A loose fit causes leaks, while a tight fit leads to breakage.

• Shield Requirements: Determine if the media will etch the glass (e.g., steam or high pH fluids) and include necessary mica or polymer protective shields.

By strictly adhering to these selection criteria, facility operators ensure the safety and longevity of their liquid level monitoring systems. Investing in high-quality materials and following rigorous installation standards not only prevents costly emergency shutdowns but also protects the lives of the personnel working in the vicinity of the equipment.

Summary

Transparent level gauges serve as critical visual monitoring tools in industrial environments, providing reliable, non-electric verification of fluid levels. By understanding the importance of proper material selection—specifically the high-performance glass required for the job—and strictly following installation and maintenance protocols, companies can ensure the safety and continuity of their operations. Whether for boiler water monitoring or volatile chemical storage, these devices remain an indispensable component of safe industrial practice.
