Composition of Borosilicate Glass
Key Properties of Borosilicate Glass
Applications of Borosilicate Sight Glass
Advantages of Borosilicate Glass Over Other Types
The Role of Tempered Borosilicate Glass
Specialized Forms of Borosilicate Glass
Conclusion
Industrial processing environments depend heavily on the continuous monitoring of fluid dynamics, chemical reactions, and thermal shifts within sealed piping systems, pressure vessels, and storage tanks. A primary component enabling this visual verification is the industrial sight window, which must withstand severe operational stress without suffering structural failure or catastrophic shattering. The choice of material for these windows is not merely a matter of mechanical thickness but is deeply rooted in the underlying molecular architecture of the material itself.
Borosilicate Sight Glass represents the pinnacle of industrial viewing technology because its specific chemical composition minimizes thermal expansion, resists aggressive chemical corrosion, and maintains structural integrity under extreme pressures.
Understanding the precise science behind this specialized material allows plant engineers, procurement specialists, and system designers to optimize their processing lines for maximum safety and longevity. This comprehensive analysis will explore the chemical configuration, essential physical properties, widespread industrial applications, and distinct structural variations that make this material the premier choice for demanding industrial operations globally.
The chemical composition of Borosilicate Sight Glass is defined by a high concentration of silica combined with boron trioxide, creating a robust atomic matrix that eliminates internal stress and minimizes thermal expansion.
Unlike standard glass variants that rely heavily on calcium and sodium oxides, this specialized industrial material utilizes a precise combination of compounds to alter its fundamental molecular grid. The primary network former remains silicon dioxide, which comprises approximately 70% to 81% of the total mass. The definitive additive is boron trioxide, typically constituting between 7% and 13% of the chemical makeup. The addition of fluxing agents, such as aluminum oxide and various alkali oxides like sodium oxide and potassium oxide, further refines the melting behavior and structural stability of the final product.
At the atomic level, the introduction of boron into the silicate network significantly modifies the classic glass structure. In standard formulations, the addition of alkali ions creates non-bridging oxygen atoms, which disrupt the continuous network and render the material more susceptible to thermal movement and chemical attack. Conversely, boron coordinates with oxygen to form highly stable, three-dimensional trigonal and tetrahedral structural units. These units seamlessly interlink with the existing silicon-oxygen tetrahedra, constructing a tightly bound, highly cross-linked atomic framework that inherently resists deformation when exposed to rapid kinetic changes.
This complex chemical framework directly influences the macro-scale performance of the material in demanding industrial environments. The strong covalent bonds within the boron-silicate matrix require exceptionally high thermal energy to disrupt, explaining the elevated melting and softening points of the glass. Furthermore, the absence of widespread non-bridging oxygen sites prevents volatile ions from easily leaching out of the structure when exposed to corrosive fluids. This unique atomic arrangement forms the core foundation upon which all subsequent physical and thermal advantages are constructed.

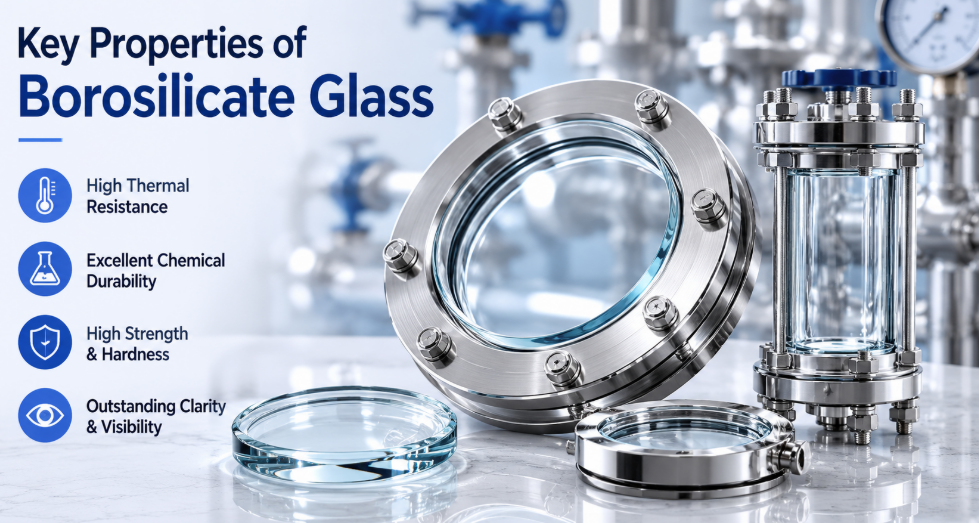

The key properties of Borosilicate Sight Glass include an exceptionally low coefficient of thermal expansion, outstanding chemical durability across acidic and alkaline phases, high light transmittance, and superb mechanical compressive strength.
The most notable physical characteristic arising from this specific chemical formulation is the remarkably low coefficient of thermal expansion. Typically rated at approximately 3.3乘以10的负6次方每开尔文, this value is roughly one-third that of standard soda-lime alternatives. When an industrial component is exposed to localized heating or sudden temperature drops, the low thermal expansion prevents uneven localized volume changes within the material. Consequently, internal mechanical stresses do not accumulate, allowing the glass to endure thermal shocks exceeding 150°C without experiencing micro-fracturing or failure.
Beyond its thermal capabilities, this material exhibits extreme chemical resistance, often categorized under Class 1 hydrolytic resistance standards. The tightly knit atomic lattice prevents water molecules, acidic compounds, and neutral saline solutions from reacting with or degrading the surface. This ensures the viewing window remains clear and structurally uncompromised over years of exposure to harsh process fluids.
Property Type | Technical Metric / Value | Industrial Relevance |
Coefficient of Thermal Expansion | 3.3 x 10^-6 / K | Prevents thermal shock failure under rapid temp changes |
Transformation Temperature | 525°C to 530°C | Defines the boundary of safe high-temperature operation |
Softening Point | Approximately 820°C | Prevents structural deformation under extreme thermal loads |
Refractive Index | 1.474 | Ensures optical clarity and accurate level assessment |
Density | 2.23 g/cm³ | Provides a high strength-to-weight ratio for industrial assemblies |
The mechanical robustness of the material allows it to withstand considerable flexural and compressive loads within industrial housings. Its high modulus of elasticity ensures minimal deflection under pressure, which is critical for maintaining tight seals in liquid storage systems. Simultaneously, the material maintains superior optical clarity, offering high light transmittance across the visible spectrum and extending into the near-ultraviolet and infrared wavelengths. This ensures operators can accurately read fluid color, turbulence, and interface levels without distortion.
Borosilicate Sight Glass is extensively applied in high-temperature boiler systems, chemical processing plant pipelines, oil and gas transport vessels, and hygienic pharmaceutical production lines.
In heavy industrial plants, steam generation systems operate under extreme temperature and pressure parameters. Windows constructed from this high-performance material are regularly integrated into boiler columns and steam drums to monitor water levels and check for scaling or sediment buildup. The ability to withstand sudden thermal fluctuations when cold water mixes with superheated steam makes it an invaluable safety component, preventing catastrophic blowouts that could endanger plant personnel.
Chemical manufacturing facilities handle aggressive acids, organic solvents, and reactive solutions that rapidly degrade inferior viewing windows. By installing high-durability options such as a heavy-duty Borosilicate Sight Glass Diesel Fuel Tank Reflex Level Gauge Glass, operators gain a secure means to visually verify complex fluid reactions, color transitions, and phase separations. The high hydrolytic and acid resistance ensures that the viewing port remains clear of etching or clouding, preserving optical transparency over extended service campaigns.
Within oil refineries and fuel transport networks, visual monitoring of hydrocarbons and gases is essential for quality control and leak prevention. These robust viewing panes are integrated into distillation columns, separator units, and bulky storage tanks. The material's mechanical strength allows it to safely manage fluctuating pressures, while its spark-resistant, non-combustible nature aligns perfectly with the stringent explosion-proof safety requirements of hazardous industrial zones.
The advantages of Borosilicate Sight Glass over alternative materials lie in its superior thermal shock thresholds, superior chemical inertness, and resistance to environmental degradation over extended operating cycles.
Soda-lime formulation is the most common glass type utilized in commercial and residential settings. However, when placed in an industrial processing context, its high coefficient of thermal expansion renders it vulnerable to thermal shock. A temperature change of just 50°C can cause soda-lime window panes to crack due to uneven internal stresses. In contrast, borosilicate variants handle severe temperature transitions effortlessly, reducing down-time and eliminating the risk of process contamination caused by fractured viewing ports.
Transparent polymers like acrylic or polycarbonate are often considered for low-cost viewing applications due to their high impact resistance. However, plastics possess low thermal thresholds and degrade rapidly when exposed to organic solvents, UV radiation, or high temperatures. Over time, plastic windows scratch, discolor, and become brittle. Borosilicate formulations remain completely unaffected by UV exposure, do not yellow or scratch easily under mechanical cleaning, and maintain full structural integrity at temperatures where plastics would completely melt or deform.
Fused quartz offers exceptionally high temperature resistance and excellent thermal shock capabilities, but it is expensive to manufacture and difficult to mold into specialized structural shapes. For the vast majority of industrial processing applications operating below 500°C, borosilicate options provide a highly cost-effective solution. It delivers nearly identical chemical resistance and sufficient thermal tolerance at a fraction of the procurement cost, optimizing operational budgets without sacrificing safety margins.
The role of tempering in Borosilicate Sight Glass is to inject high compressive stress onto the material surface, effectively doubling its mechanical impact strength and significantly boosting its maximum safe working pressure.
The raw chemical composition provides an excellent foundation for thermal endurance, but demanding industrial applications often require enhanced mechanical resilience. This is achieved through a precise thermal tempering process. The glass component is heated uniformly to its softening zone, roughly 600°C to 650°C, and then rapidly quenched using directed streams of high-pressure air. This rapid cooling causes the outer skin of the material to solidify faster than the internal core, locking in high compressive stresses on the exterior while creating tensile stresses within the interior matrix.
This balanced stress profile modifies the mechanical failure mechanics of the window pane. Because glass failures almost always initiate from surface micro-cracks propagating under tensile loads, the pre-existing surface compression must first be overcome before a crack can spread. This treatment increases the mechanical flexural strength of a standard Borosilicate Sight Glass Diesel Fuel Tank Reflex Level Gauge Glass by a factor of two or three. It allows the component to function safely in high-pressure reactors and deep-tank storage configurations where un-tempered glass would fail instantly.
Furthermore, tempering fundamentally changes the fragmentation behavior of the component if its ultimate breaking threshold is exceeded. Rather than fracturing into large, jagged, razor-sharp shards that can penetrate protective seals and endanger operators, tempered variants fracture into small, relatively blunt, granular fragments. This predictable fracturing mechanism minimizes the risk of catastrophic high-pressure fluid release and ensures that any structural compromise develops in a manageable, localized manner, facilitating safer emergency system shutdowns.
Specialized forms of Borosilicate Sight Glass encompass distinct geometries such as circular disks, transparent rectangular plates, and reflex indicators configured with molded internal prisms.
Circular viewing windows are widely deployed in the flanged access ports of large reactors, mixing tanks, and pressure vessels. These disks are precision-ground to ensure parallel flat surfaces, allowing for tight, leak-free sealing against industrial elastomeric gaskets. Rectangular transparent plates are similarly employed in linear liquid level indicators, providing a clear, direct view of fluid columns within high-pressure chambers and enabling operators to visually verify fluid color and clarity.
Reflex level gauges represent an advanced utilization of optical geometry combined with precise material molding. The process-facing surface of a reflex indicator features molded, longitudinal prisms set at precise 90-degree angles. These prisms utilize the principles of total internal light reflection to create a sharp contrast between liquid and gas phases. When light hits the portion of the glass backed by gas, it reflects directly back to the observer, appearing as a bright, silvery zone. When light hits the portion covered by liquid, the refractive index shifts, allowing the light to pass through into the fluid and causing that section to appear dark or black.
These advanced optical properties are critical for managing volatile fluids in large industrial installations. Incorporating a specialized Borosilicate Sight Glass Diesel Fuel Tank Reflex Level Gauge Glass ensures that operators can quickly and accurately verify fluid levels from a distance, even in low-light environments or under turbulent process conditions. This specialized design reduces human error in manual level logging and adds an extra layer of protection against tank overfills or hazardous dry-running scenarios.
In conclusion, the distinctive chemical architecture of Borosilicate Sight Glass provides the foundational thermal resistance, structural durability, and optical clarity required to safely manage modern industrial fluid processes.
By substituting standard network-disrupting elements with a tightly bound boron-silicate framework, this engineering material achieves a remarkably low coefficient of thermal expansion and outstanding hydrolytic resilience. These atomic characteristics translate directly into reliable field performance, preventing thermal shock failures and managing aggressive chemical exposure across a wide range of processing environments.
Whether deployed as standard circular observation ports, high-pressure tempered windows, or specialized reflex level indicators, these components remain critical for operational safety and process control. Investing in premium borosilicate viewing systems ensures that industrial plants maintain optimal visibility into their processing lines, protecting capital equipment and personnel while maximizing long-term production efficiency.
