What is the difference between reflective glass and transparent glass?

The fundamental difference between reflective glass and transparent glass lies in their optical properties and intended functionality: transparent glass is engineered for clear, unimpeded visibility from both sides of the glass, whereas reflective glass features a grooved surface designed to refract light, making it easier to read liquid levels in specific instrumentation.

This article will delve into the technical nuances of these materials, exploring how their manufacturing processes dictate their performance in the field. We will also examine how these differences influence your choice of high-performance transparent gauge glass for various industrial environments. By understanding these distinctions, you can ensure that your facility maintains optimal monitoring efficiency.

Table of Contents

Defining Transparent Gauge Glass

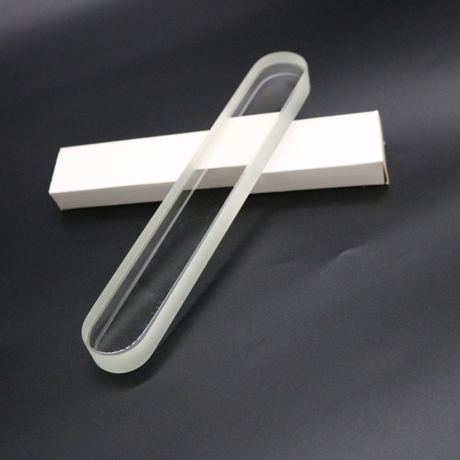

Transparent gauge glass is a flat, clear borosilicate or aluminosilicate glass designed to provide a completely unobstructed view of the process media contained within a vessel or chamber.

The primary utility of transparent glass lies in its neutrality. Because it lacks internal optical patterns, it is the preferred choice when the operator needs to observe not just the level of the liquid, but also its color, clarity, or state (such as boiling or turbulent flow). In many high-pressure steam applications, engineers rely on the high-quality industrial transparent gauge glass because it allows for the use of illuminators that can shine through the chamber, making the liquid level clearly visible even in low-light environments.

Manufacturing this type of glass involves high-temperature tempering processes to ensure it can withstand extreme thermal shock and mechanical stress. The surface is polished to a high degree of smoothness to prevent light distortion, ensuring that the visual data transmitted to the operator is accurate. Because it is clear, it is often paired with a separate background illuminator or a mica shield to protect the glass surface from erosion caused by aggressive chemicals or high-velocity steam.

When utilizing transparent glass, the internal chamber design is just as important as the glass itself. Since the glass does not inherently differentiate between liquid and vapor, the gauge body must be designed to enhance contrast—often through the use of specific lighting techniques or colored indicators. This makes it an incredibly versatile, albeit slightly more complex, component in sophisticated industrial monitoring loops.

The Mechanics of Reflective Glass

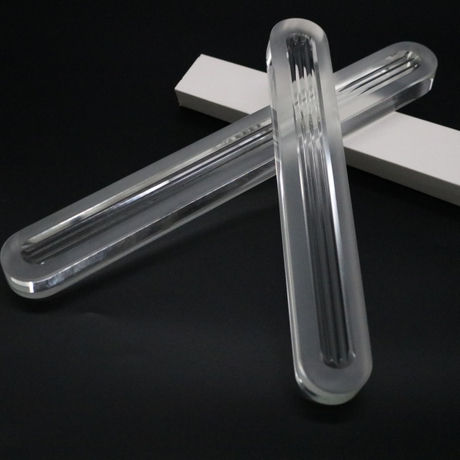

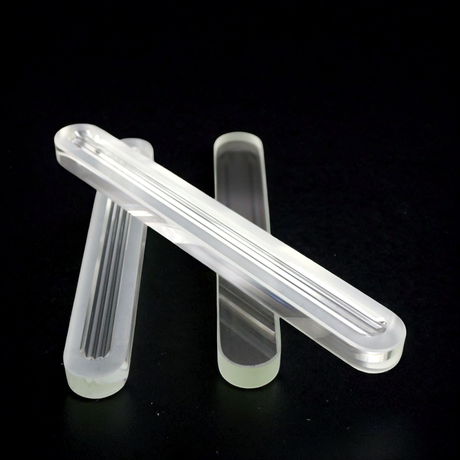

Reflective glass, often referred to as reflex glass, incorporates a series of longitudinal grooves molded into the process-side surface to utilize the principle of total internal reflection to distinguish between liquid and vapor.

Unlike transparent glass, the design of reflex glass is inherently functional regarding light manipulation. When light hits the surface of the glass where there is no liquid (the vapor space), the grooves reflect the light back toward the observer, making that portion of the glass appear silvery or white. Conversely, where the liquid is present, the liquid's refractive index changes the path of the light, causing the grooves to lose their reflective property, which makes the liquid appear dark.

This "automatic" contrast generation is the primary reason why reflex glass is the industry standard for simple level indication. It eliminates the need for external illuminators in many standard applications. However, this advantage comes with limitations; because the grooves are in direct contact with the process fluid, the material is susceptible to fouling or erosion if the fluid is particularly corrosive or abrasive.

Engineers must carefully assess the chemical compatibility of the process media with the glass. While the optics provide a significant advantage in legibility, they do not offer the same "look-through" capability as transparent variants. Consequently, if the operator needs to monitor the condition of the fluid beyond its level—such as its turbidity or contamination levels—the refractive nature of the grooves may obscure the view.

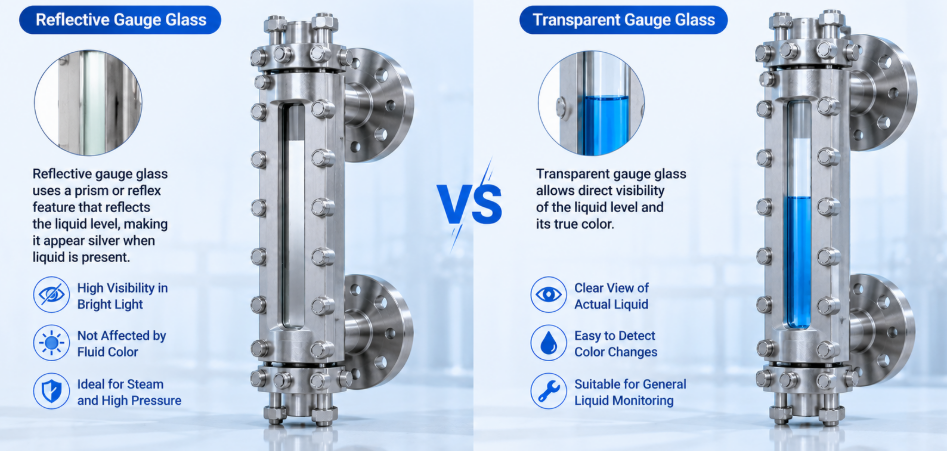

Key Performance Comparisons

When comparing these two materials, performance is defined by visibility requirements, chemical compatibility, and the ability of the glass to withstand process conditions.

Transparent glass excels in scenarios where observation of the fluid's quality is necessary, or where extreme conditions require the use of protective shields (like mica) that would interfere with the grooves of reflex glass. On the other hand, reflex glass is superior for quick, high-contrast level readings in clean service environments where external illumination is not feasible or desired.

Below is a breakdown of how these glasses compare across critical industrial metrics:

• Visibility: Transparent glass offers full visibility, whereas reflex glass offers high-contrast "black and white" indication.

• Maintenance: Transparent glass is easier to inspect for fouling; reflex glass can trap contaminants in the grooves, making it harder to clean in service.

• Protective Barriers: Transparent glass easily accommodates mica or PCTFE shields; reflex glass cannot be used with these shields as they would neutralize the refractive effect.

• Media Compatibility: For high-pressure steam, transparent glass is often preferred due to the ability to use thick protective mica sheets.

By carefully evaluating these factors, you can determine which high-pressure resistant transparent glass or reflex solution fits your specific vessel design and operational requirements.

Choosing the Right Solution

The choice between transparent and reflective glass is ultimately a balance between the need for visual clarity of the process media and the need for simple, high-contrast level indication.

For critical chemical processes where the condition of the fluid must be monitored to prevent downstream contamination, transparent glass is the standard. It provides a clear window into the process, allowing for visual checks of color changes, the presence of sediment, or interface separation between two immiscible liquids. For these applications, the glass is essentially a neutral observer.

For utility services, such as simple water level monitoring or hydrocarbon storage, reflex glass is often the more cost-effective and efficient solution. The installation is straightforward, and the operational simplicity reduces the burden on operators who need to quickly verify levels without checking for fluid condition.

To summarize the decision-making process:

1. Analyze the Fluid: Is it clean water/oil (Reflex) or a complex chemical mix (Transparent)?

2. Evaluate Pressure/Temperature: Do you require additional internal shielding like mica? If yes, go with Transparent.

3. Define Observation Goals: Do you need to see the fluid's physical state (turbidity, boiling)? If yes, go with Transparent.

Maintenance and Safety

Regardless of the type selected, maintaining the integrity of industrial sight glass is a matter of safety and regulatory compliance. Regular inspections should focus on detecting erosion, surface scratching, and signs of stress at the sealing gaskets.

Transparent glass, because of its smooth surface, is often easier to inspect for microscopic cracks during routine maintenance. Operators should use appropriate lighting during these inspections to ensure that no "star" cracks or deep gouges are present. Furthermore, when replacing glass, always ensure that the gasket material is compatible with the process fluid and that the torque on the mounting bolts is applied according to the manufacturer's specifications to prevent uneven stress loading on the glass plate.

Reflex glass requires an additional check during maintenance: ensure that the grooves are not clogged with process residue. A buildup of sludge can negate the reflective effect, leading to false level readings. If the glass remains difficult to read after cleaning, it is often an indication that the surface of the glass has been etched by the process, and the component should be replaced to maintain operational safety.

Conclusion

Understanding the distinct roles of transparent and reflective glass is vital for maintaining the efficiency and safety of industrial instrumentation. While transparent glass serves as a versatile, clear window for complex monitoring, reflective glass offers a highly legible, purpose-built solution for level detection. By choosing the right material—and ensuring it is installed and maintained with precision—you can improve the longevity of your equipment and the accuracy of your facility’s processes. Always prioritize the specific demands of your media and pressure conditions to make the most informed choice for your site.
