The reliable operation of industrial steam systems depends heavily on the ability of operators to monitor internal conditions in real-time. Among the most critical components for this task is the steam boiler sight glass, a specialized transparent gauge glass assembly that allows for the direct observation of water levels within a pressurized vessel. Without this visual interface, maintaining the delicate balance between steam production and water replenishment would be nearly impossible, leading to catastrophic equipment failure or decreased thermal efficiency.
A steam boiler sight glass, often referred to as a transparent gauge glass, is a high-strength borosilicate or aluminosilicate glass component integrated into a level gauge to provide a clear, real-time visual representation of the liquid level inside a pressurized steam boiler. It serves as a primary safety instrument, allowing operators to verify that water levels remain within the manufacturer’s specified safety parameters to prevent dry-firing or water carryover.
Understanding the nuances of transparent gauge glass selection, maintenance, and replacement is essential for any facility manager or boiler technician. This guide explores the engineering principles behind these components, the various types available for high-pressure environments, and the best practices for ensuring their longevity and accuracy. By focusing on the technical specifications of transparent gauge glass, industries can enhance both the safety and the performance of their steam infrastructure.
Steam Boiler Sight Glass Working Principles
Different Types Of Steam Boiler Sight Glass
Replacing A Sight Glass
Key Technical Specifications for Transparent Gauge Glass
Common Causes of Transparent Gauge Glass Failure
Maintenance Protocols for Industrial Level Gauges
The working principle of a steam boiler sight glass relies on the physical law of communicating vessels, where a transparent gauge glass is connected to the boiler drum via top and bottom valves, ensuring the liquid level in the glass is identical to the level inside the boiler. This transparent gauge glass acts as a pressure-resistant window, utilizing optical clarity and thermal stability to allow human monitoring of the water-steam interface under high-temperature conditions.
The fundamental physics involved is hydrostatic equilibrium. Because the transparent gauge glass is linked to both the steam space (top) and the water space (bottom) of the boiler, the pressure exerted on the water column within the transparent gauge glass is equal to the internal pressure of the boiler. Consequently, gravity pulls the water to the same height in both containers. This provides a fail-safe mechanical reading that does not rely on electronic sensors or floating mechanisms, which are prone to calibration errors or electrical failure.
In high-pressure environments, the transparent gauge glass must also account for light refraction. When light passes through the steam and the water, it bends at different angles. Manufacturers often utilize "reflex" or "transparent" designs to enhance this visual distinction. In a transparent gauge glass setup, light is typically shone through the back of the glass, and the difference in transparency between the gaseous steam and the liquid water makes the meniscus clearly visible to the naked eye.
Furthermore, the transparent gauge glass must withstand extreme thermal shock. During startup, the glass transitions from ambient temperature to several hundred degrees Celsius. High-quality transparent gauge glass is manufactured from borosilicate materials with low coefficients of thermal expansion to prevent cracking. This material integrity is what allows the transparent gauge glass to function as a reliable barrier between the high-pressure steam environment and the external atmosphere.

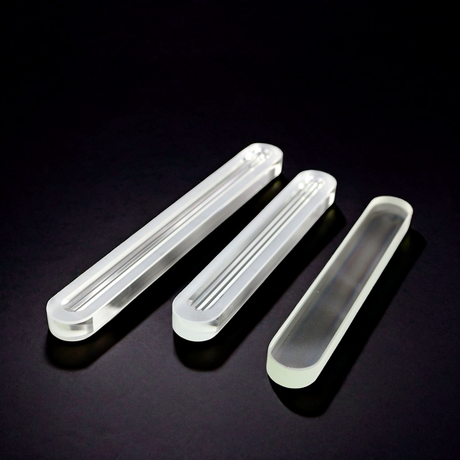

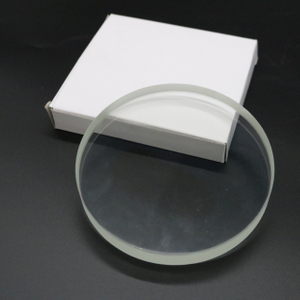

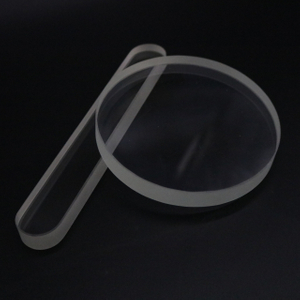

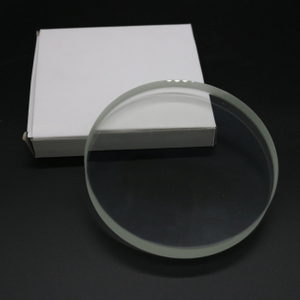

There are several distinct types of transparent gauge glass used in industrial settings, primarily categorized into reflex gauge glass, transparent gauge glass, and circular sight windows, each designed to handle specific pressure ratings and visibility requirements. Choosing the correct transparent gauge glass depends on the chemical composition of the boiler water, the maximum operating pressure, and whether the operator requires backlighting for distant monitoring.

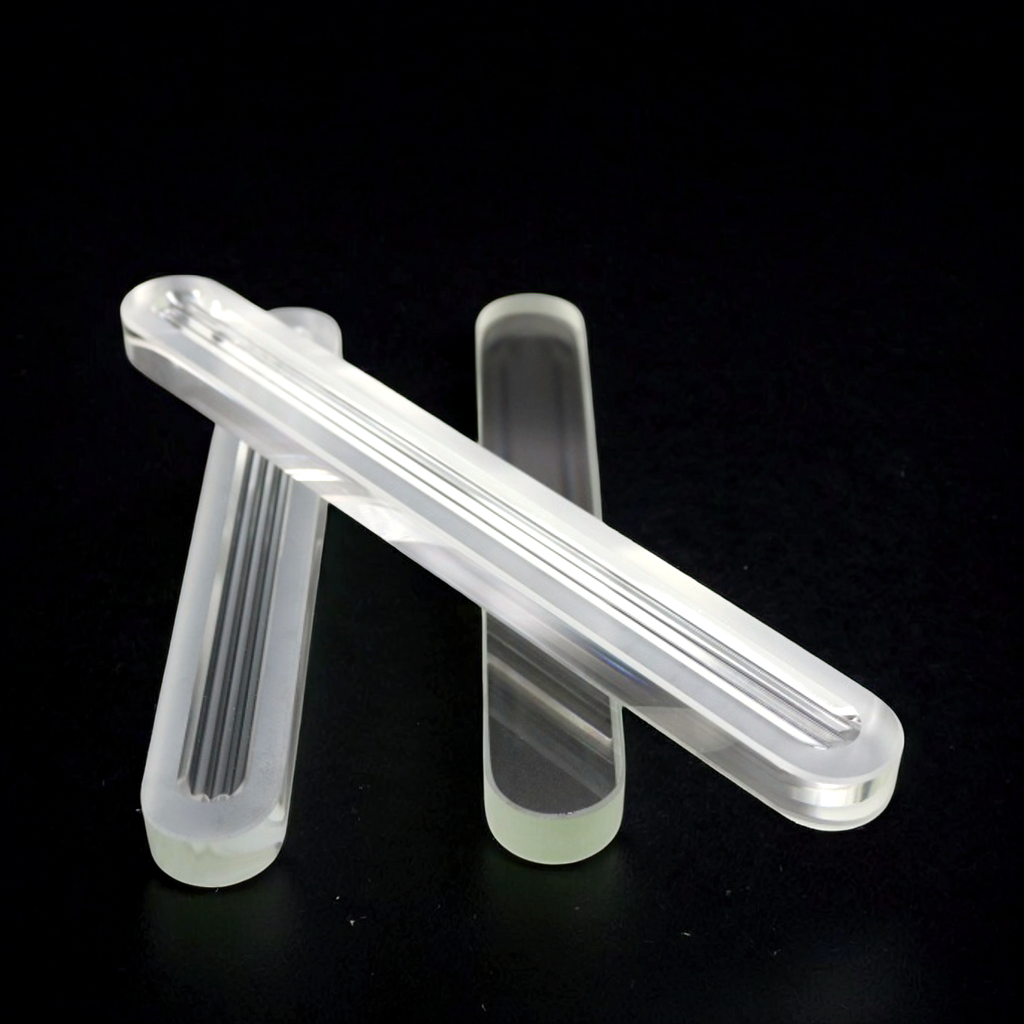

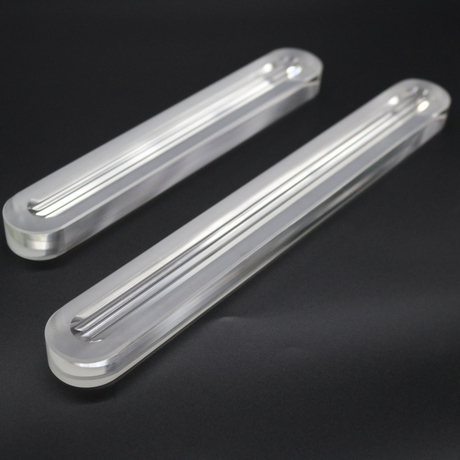

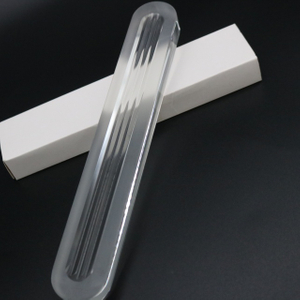

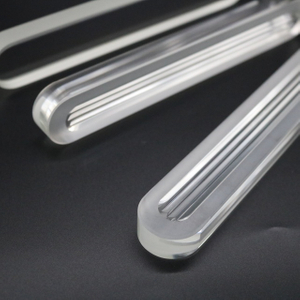

Reflex Gauge Glass: This type features a smooth outer surface and a series of prismatic grooves on the side facing the medium. These prisms utilize the principle of total internal reflection. When the transparent gauge glass is in contact with steam, light is reflected back to the operator, appearing bright or silvery. When in contact with water, the light is absorbed, making the water column appear dark or black. This high contrast makes reflex-style transparent gauge glass ideal for rapid level checks.
Transparent Gauge Glass (Flat): Unlike the reflex type, this transparent gauge glass has smooth surfaces on both sides. It is usually installed in pairs within a heavy-duty metal housing. This allows light to pass through the assembly from the back. Transparent gauge glass is often used in high-pressure boilers (above 35 bar) where a mica shield is required to protect the glass from the corrosive effects of alkaline boiler water.
High-Pressure Mica Protected Glass: For extreme utility-grade boilers, the transparent gauge glass is reinforced with a thin sheet of natural mica. The mica acts as a chemical barrier, preventing the steam and hot water from etching the transparent gauge glass. This ensures that the transparent gauge glass maintains its structural thickness and optical clarity over much longer service intervals than unprotected glass.
The selection process for a transparent gauge glass must prioritize the "Tempered" or "Toughened" status of the material. A standard transparent gauge glass is thermally tempered to increase its mechanical strength by up to five times compared to ordinary glass. This tempering process ensures that if the transparent gauge glass were to fail, it would crumble into small, less harmful fragments rather than sharp shards, although in a pressurized boiler, a failure is always a serious safety event.
Replacing a transparent gauge glass involves a strict safety sequence: isolating the gauge from the boiler pressure, draining the residual liquid, removing the damaged transparent gauge glass, and installing a new unit with fresh gaskets to ensure a leak-proof seal. It is vital to use a calibrated torque wrench during the installation of a transparent gauge glass to apply even pressure across the glass surface, preventing localized stress points that could lead to premature failure.
The first step in replacing a transparent gauge glass is the "lock-out, tag-out" procedure. Both the top steam valve and the bottom water valve must be closed tightly. The drain valve is then opened to atmospheric pressure. Only after the assembly has cooled and the pressure is verified at zero should the bolts be loosened. When removing the old transparent gauge glass, the technician must inspect the metal seating surfaces for any signs of erosion or "steam cutting," which could prevent the new transparent gauge glass from sealing properly.
When installing the new transparent gauge glass, the sequence of components is critical. A high-quality cushion gasket is placed between the metal cover and the transparent gauge glass, while a sealing gasket is placed between the transparent gauge glass and the gauge body. This sandwich construction protects the transparent gauge glass from direct contact with the metal, which would cause cracking during thermal expansion. The bolts must be tightened in a "star pattern" or "cross-over pattern" to ensure the transparent gauge glass is compressed uniformly.
Preparation: Clean the gauge body thoroughly; remove any traces of old gasket material from the transparent gauge glass seat.
Alignment: Center the transparent gauge glass within the housing carefully to avoid contact with the metal bolts or frame.
Torquing: Gradually tighten the nuts in increments (e.g., 25%, 50%, 75%, 100% of final torque). Always refer to the manufacturer's specific torque settings for that specific transparent gauge glass model.
Commissioning: Slow-warm the new transparent gauge glass by slightly cracking the steam valve open. Never subject a cold transparent gauge glass to a sudden blast of high-pressure steam.
To ensure the safety of a B2B industrial operation, the procurement of a transparent gauge glass must be based on rigorous technical standards. Not all glass is created equal; a transparent gauge glass meant for a low-pressure heating boiler will fail instantly in a high-pressure manufacturing environment. The primary material used for a high-quality transparent gauge glass is Borosilicate 3.3, known for its exceptional resistance to thermal shock and chemical attack.
The transparent gauge glass is typically manufactured according to international standards such as DIN 7081 or JIS B 8211. Standard widths for a transparent gauge glass are often 30mm or 34mm, with thicknesses ranging from 17mm to 21mm. The length of the transparent gauge glass can vary significantly depending on the required visibility range of the boiler water level. Using a standardized transparent gauge glass ensures that replacement parts are easily accessible from various industrial suppliers.
A standard toughened transparent gauge glass can typically withstand temperatures up to 280°C (536°F) without mica protection. When paired with high-quality mica shields, the transparent gauge glass can operate in environments exceeding 320°C. The compressive strength of a transparent gauge glass is remarkably high, but its tensile strength is its weakness. Therefore, the housing must be designed to keep the transparent gauge glass in a state of compression at all times.
The manufacturing process of a transparent gauge glass includes a "polariscopic examination." This test uses polarized light to detect internal stresses within the transparent gauge glass that are invisible to the naked eye. Any transparent gauge glass showing uneven stress patterns is discarded, as these points would become the origin of a fracture under pressure. For B2B buyers, requesting a test certificate for each batch of transparent gauge glass is a standard industry best practice to ensure site safety.
Even the highest quality transparent gauge glass will eventually require replacement. Understanding why a transparent gauge glass fails can help maintenance teams extend the life of their equipment. The most common culprit is chemical erosion. Over time, the highly alkaline water found in many steam boilers begins to dissolve the silica in the transparent gauge glass. This manifests as a "cloudy" or "milky" appearance on the transparent gauge glass, which eventually thins the material to dangerous levels.
If the bolts holding the transparent gauge glass are not tightened evenly, the glass is subjected to bending stress. Since a transparent gauge glass is brittle, it cannot bend. This results in "stress cracks" originating from the edges of the transparent gauge glass. Furthermore, if the transparent gauge glass is allowed to touch any metal part of the housing (iron-to-glass contact), the different rates of thermal expansion will cause the transparent gauge glass to shatter during the heating cycle.
While borosilicate transparent gauge glass is designed for high temperatures, extreme "thermal shock" can still cause failure. This occurs if cold water is suddenly injected into a hot, empty transparent gauge glass or if a blast of high-pressure steam is introduced to a cold glass. Proper "pre-heating" protocols for the transparent gauge glass assembly are essential during boiler startup to mitigate this risk.
If a small leak develops at the gasket of the transparent gauge glass, the high-pressure steam escaping through the tiny gap will act like a precision cutting tool. This "steam cutting" can quickly erode a groove into the transparent gauge glass or the metal seat. If a transparent gauge glass shows any sign of leaking, it must be isolated and repaired immediately, as the leak will only accelerate the destruction of the transparent gauge glass.
Maintaining a transparent gauge glass is not a "set it and forget it" task. A structured maintenance schedule is required to ensure that the water level reading remains accurate and that the transparent gauge glass itself remains structurally sound. The most basic maintenance task is the daily "blowdown." By opening the drain valve while the steam and water valves are open, any sediment or scale buildup inside the transparent gauge glass chamber is flushed out.
Operators should inspect the transparent gauge glass every shift for signs of thinning, etching, or leakage. A simple way to check the condition of a transparent gauge glass is to hold a light source at an angle; if the surface looks "frosted," the transparent gauge glass has been chemically eroded and needs replacement. Additionally, the gaskets surrounding the transparent gauge glass should be checked for brittleness or weeping.
Even if the transparent gauge glass looks perfect, the gaskets have a limited lifespan. It is often recommended to replace the gaskets every time the boiler is opened for its annual internal inspection. Reusing old gaskets with a new transparent gauge glass is a recipe for failure, as the old gasket has already been compressed and will not provide the necessary "cushion" for the transparent gauge glass.
When cleaning the exterior of a transparent gauge glass, never use abrasive cleaners or metal scrapers. Scratches on the surface of a transparent gauge glass act as "stress concentrators," which can lead to a sudden explosion of the glass under pressure. Use only soft cloths and mild non-alkaline cleaning solutions to maintain the optical clarity of your transparent gauge glass.
In conclusion, the transparent gauge glass is an indispensable safety component in the operation of steam boilers. By adhering to the principles of hydrostatic balance, it provides the most reliable method for monitoring water levels. Whether you are using a reflex-style or a flat transparent gauge glass, understanding the material limitations, the importance of mica protection in high-pressure scenarios, and the necessity of precise installation torques is vital. Regular maintenance, including daily blowdowns and scheduled visual inspections of the transparent gauge glass, prevents unexpected downtime and ensures a safe working environment. Investing in high-quality transparent gauge glass and following rigorous replacement protocols is the best strategy for long-term boiler efficiency and safety.
