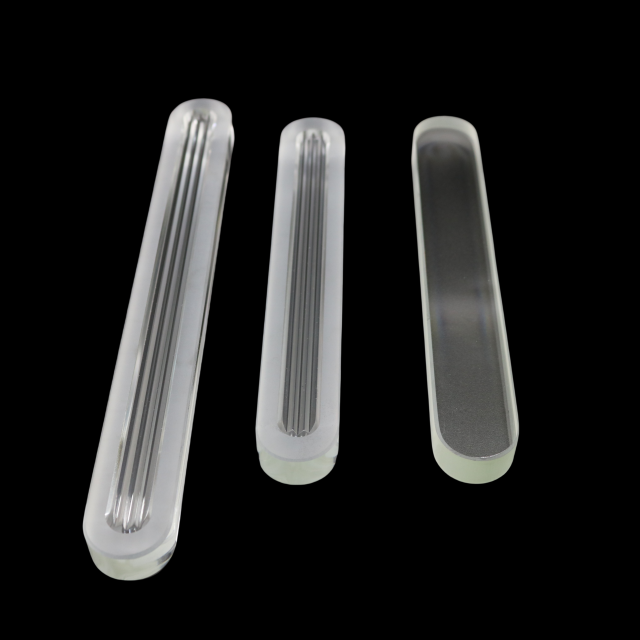

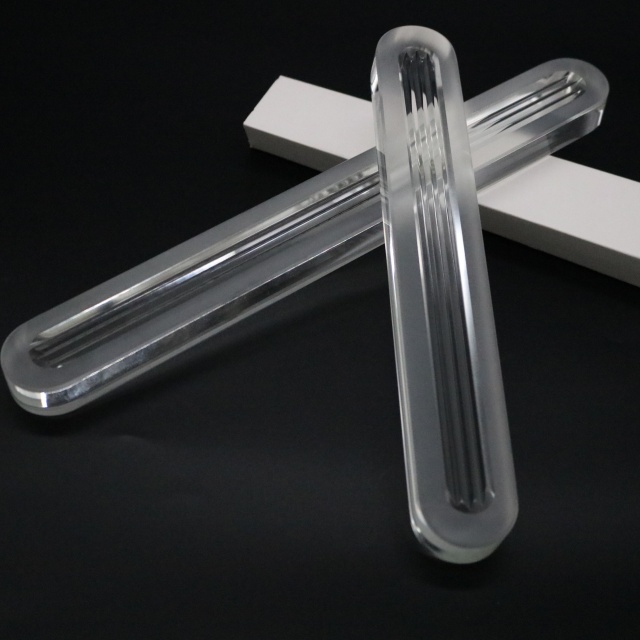

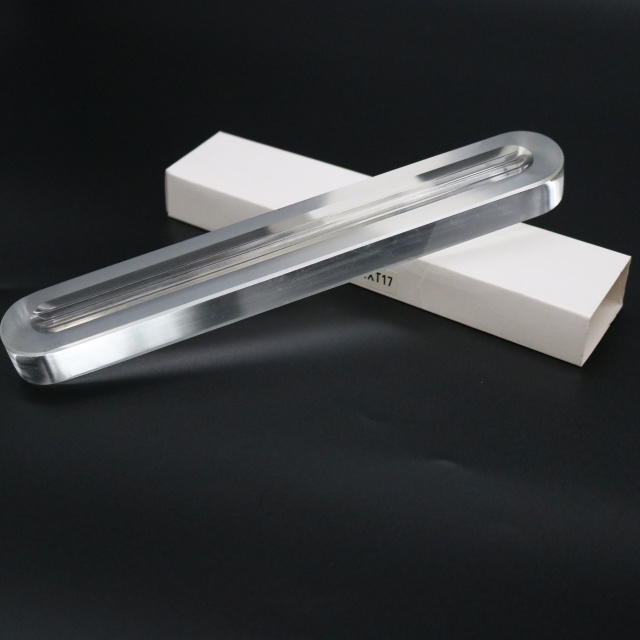

As a specialized industrial glass manufacturer, we provide high-performance Reflex Gauge Glass engineered specifically for rigorous oil tank monitoring and petrochemical storage environments. This primary level-indicating solution utilizes precision-molded longitudinal grooves to create a clear, high-contrast interface between liquid and gas phases. By integrating premium borosilicate and aluminosilicate materials, we offer global procurement managers a reliable component that ensures operational safety and precise fluid management. Each unit is processed through advanced thermal tempering to meet international pressure standards, making us a preferred supplier for heavy-duty industrial applications.
The Reflex Gauge Glass for oil tanks represents the pinnacle of industrial observational technology, designed to transform complex fluid monitoring into a simple, fail-safe visual process. When viewed through the front of the gauge, the internal prism-shaped grooves leverage the laws of light refraction to provide an unmistakable reading. In the presence of liquid, the light is absorbed, causing the glass to appear deep black, while the area occupied by gas reflects the light, appearing as a bright, silvery white. This sharp contrast eliminates the ambiguity often associated with clear fluids in high-pressure environments, ensuring that operators can assess tank levels at a glance even in low-light industrial settings.
The physical profile of the glass is characterized by its substantial weight and crystalline clarity, reflecting the high-density molecular structure of the raw materials used. Upon inspection, the surface displays an exceptional level of flatness and smoothness, which is critical for achieving a hermetic seal against the gauge body. The tactile quality of the glass—cool, dense, and perfectly polished—is a testament to the precision grinding and polishing processes it undergoes. This attention to detail ensures that the glass can withstand the immense mechanical stress exerted by tightening bolts during installation and the subsequent fluctuating pressures during active oil storage cycles.
| Specification Parameter | Technical Detail |
| Material Options | Borosilicate Glass 3.3 / Aluminosilicate (Al-Si) |
| Standard Compliance | DIN 7081 / BS 3463 |
| Max Operating Temperature | 280°C (Borosilicate) / 400°C (Aluminosilicate) |
| Max Operating Pressure | 40 Bar (Steam) / 250 Bar (Non-Steam/Oil) |
| Standard Sizes | Type A (1-9), Type B (1-9) |
| Width | 30mm / 34mm |
| Thickness | 17mm / 21mm |
| Surface Flatness | < 0.005 mm |
| Longitudinal Grooves | 3 or 4 Prism Grooves (Reflex Side) |
| Gasket Compatibility | Graphite, PTFE, Non-asbestos fiber |
The integrity of an oil tank monitoring system depends entirely on the durability of its sight glass. Our reflex gauge glass is manufactured to transcend the limitations of standard observational windows, offering specialized features for the modern industrial facility.
Engineered with a low coefficient of linear expansion, this glass can endure rapid temperature fluctuations common in outdoor oil storage and processing. Whether subjected to sudden cold rain on a hot tank or the introduction of heated media, the glass maintains its structural integrity without cracking or micro-fracturing.
The precision of the molded grooves is held to microscopic tolerances. This ensures that the "silver-black" transition remains sharp and distinct over years of service. Unlike lower-quality alternatives that may cloud or lose their refractive properties, our glass stays transparent and highly legible, reducing the risk of manual reading errors.
Specifically formulated for the oil and gas sector, the borosilicate and Al-Si compositions resist the corrosive effects of crude oil, refined fuels, and acidic additives. The glass surface remains resistant to "frosting" or chemical etching, which preserves the optical quality and extends the replacement interval, thereby lowering the total cost of ownership.
The selection of raw materials is the foundation of our expertise. We utilize two primary glass types to cater to diverse industrial demands, ensuring that every procurement request is met with the appropriate metallurgical and chemical properties.
Our borosilicate glass is characterized by a high silica and boric oxide content. This composition is the industry standard for general-purpose oil and water level indication. It offers excellent hydrolytic resistance and is capable of handling the thermal stresses typical of medium-pressure boiler and tank applications.
For high-pressure environments exceeding 35 bar in steam or extremely high-temperature oil processing, we provide aluminosilicate glass. This material possesses a higher softening point and superior mechanical strength compared to borosilicate. It is less susceptible to alkaline attack and maintains its rigid structure under the most demanding industrial loads, providing an extra layer of safety for critical infrastructure.
Quality in the industrial glass sector is not an accident; it is the result of strict adherence to international engineering standards. We align our production lines with the rigorous requirements of DIN 7081 to ensure global compatibility and safety.
Every piece of reflex glass undergoes a controlled thermal tempering process. By heating the glass to its transition point and then rapidly cooling it with high-pressure air, we create a state of high compressive stress on the surface balanced by tensile stress in the core. This "toughening" increases the mechanical strength by up to five times that of annealed glass, ensuring it can handle the crushing forces of high-pressure liquid levels.
Our CNC grinding and polishing facilities ensure that the thickness and width of each glass strip are uniform within microns. Perfect parallelism between the front and back faces is essential. If the glass is not perfectly flat, the sealing gaskets will not compress evenly, leading to leaks that can jeopardize the entire tank system. We utilize laser interferometry to verify surface flatness before any unit leaves our facility.
While optimized for oil tanks, the robust nature of our reflex gauge glass makes it a versatile component for a wide array of fluid management systems.
In refineries, where hydrocarbons are processed at varying pressures, our glass provides a reliable window into the state of separation tanks, flash drums, and storage vessels. Its resistance to oil-based chemicals ensures a long service life without degradation.
The salty, corrosive atmosphere of offshore rigs and ship engine rooms requires materials that do not oxidize or weaken. Our glass, paired with high-quality gaskets, stands up to the harsh maritime environment, providing clear fuel and ballast levels for naval engineers.
For auxiliary tanks in power plants, such as lubrication oil reservoirs for turbines or water treatment tanks, the reflex glass offers a low-maintenance, high-visibility solution that fits seamlessly into existing level gauge housings.
To ensure the longevity of the gauge glass and the safety of the operators, proper handling and maintenance are paramount. A well-installed glass can last for years, whereas a poorly handled one may fail prematurely.
When installing the reflex glass into the gauge body, it is vital to use a torque wrench and follow a cross-tightening pattern. This ensures that the pressure from the cover plate is distributed evenly across the glass surface. Uneven pressure is the leading cause of glass breakage during commissioning.
Always use new, high-quality gaskets when installing or replacing glass. We recommend a cushion gasket on the glass side and a sealing gasket on the liquid side. These components absorb the mechanical imperfections of the metal gauge body and create the actual pressure seal. Over time, heat cycles will harden these gaskets, so they should be replaced whenever the gauge is opened for cleaning.
Industrial fluids can sometimes leave deposits in the reflex grooves. Periodic cleaning with non-abrasive detergents will maintain the high contrast of the reflex effect. During cleaning, the glass should be inspected for any signs of "scalloping" or thinning, which are indicators that the glass has reached the end of its safe service life.
Selecting a partner for industrial glass components requires more than just looking at a price list; it requires a commitment to technical excellence and reliable supply.
With decades of experience in the specialized field of level gauge glass, we have refined our processes to eliminate the common defects found in mass-produced alternatives. Our expertise in thermal tempering and prism molding is reflected in the durability of our products in the field.
We understand that not every tank follows standard dimensions. Our facility is equipped to provide custom lengths and specialized material formulations to meet unique engineering challenges, ensuring that you receive a component that fits perfectly into your specific operational workflow.
We serve a worldwide clientele, providing the documentation and packaging necessary for international transit. Our technical support team is available to assist procurement managers and engineers in selecting the correct glass type and size for their specific pressure and temperature requirements, ensuring a seamless integration into their supply chain.
Reflex gauge glass features prism grooves on one side to create a high-contrast black-and-white display of the liquid level, making it ideal for clean fluids like oil and water. Transparent gauge glass is smooth on both sides, allowing light to pass through. Transparent glass is typically used for high-pressure steam or highly corrosive liquids where a mica shield must be used to protect the glass surface.
While reflex glass can be used for steam up to approximately 35 bar, it is not recommended for high-pressure steam because the steam can erode the prism grooves over time, reducing the contrast. For high-pressure steam applications, transparent glass protected by mica shields is the industry-standard choice.
DIN 7081 is the globally recognized standard for level gauge glass. Compliance ensures that the glass has been manufactured to specific dimensions, material purities, and pressure ratings. Using DIN 7081 compliant glass ensures that the replacement parts will fit standard gauge bodies from any major manufacturer and will perform safely under the stated conditions.
The replacement interval depends on the severity of the operating conditions, including temperature, pressure, and the chemical nature of the fluid. We recommend a visual inspection every six months. If any clouding, deep scratches, or erosion of the prism grooves are noted, the glass should be replaced immediately to prevent accidental failure.
We offer complete sets that include the reflex gauge glass along with compatible sealing and cushion gaskets. Providing the glass and gaskets together ensures that the materials are chemically compatible and that the thickness of the gaskets is optimized for the specific glass size, facilitating a leak-free installation.
