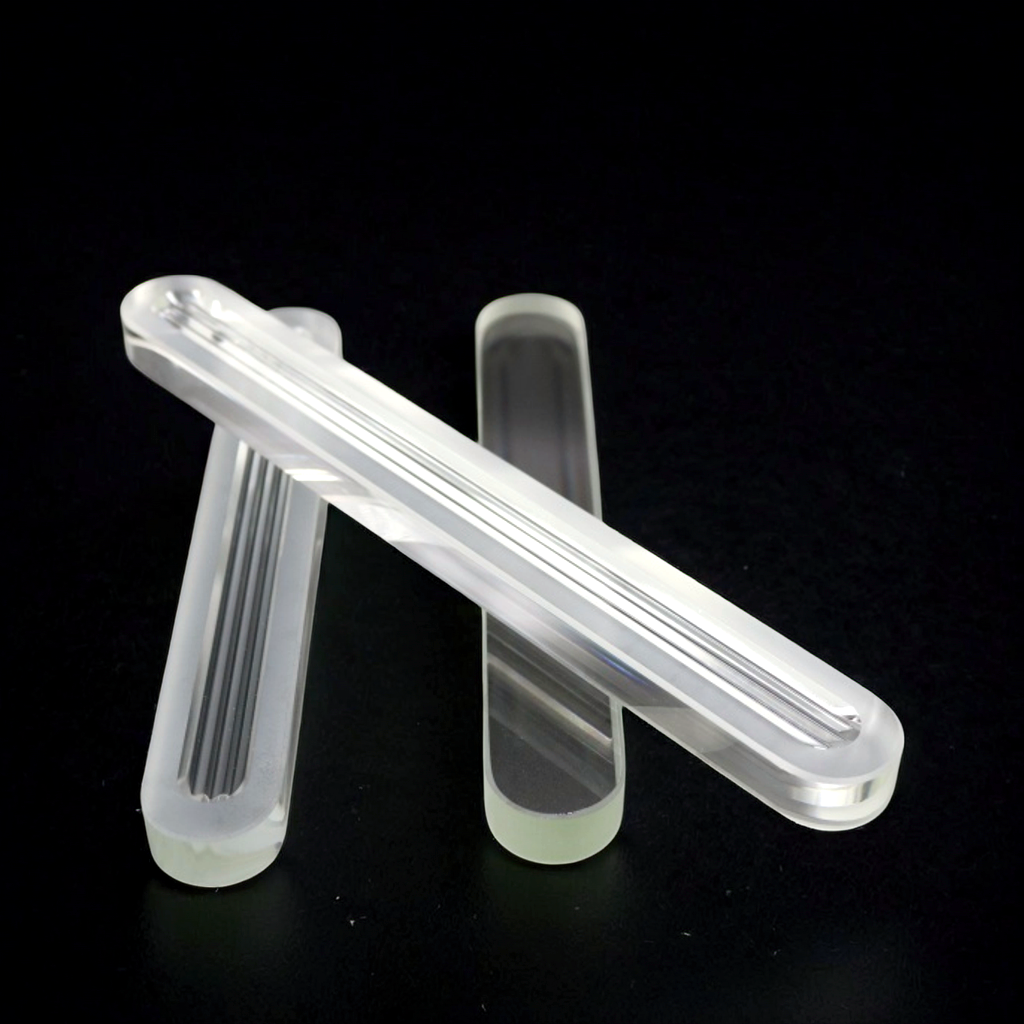

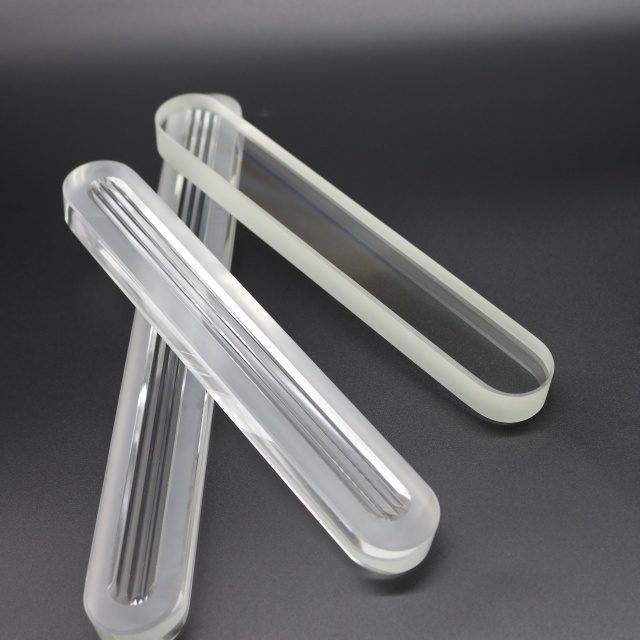

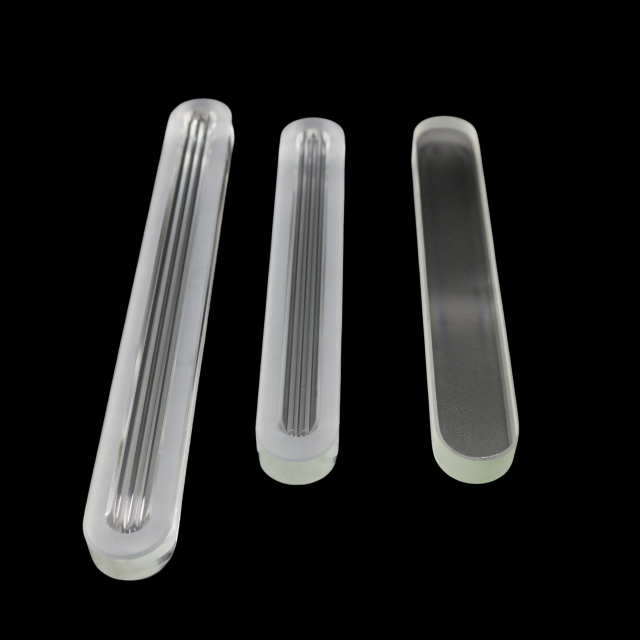

This industrial-grade Liquid Level Reflex Gauge Glass is engineered for precision monitoring in high-pressure and chemically aggressive environments. As a leading manufacturer and specialized supplier of technical glass solutions, we provide these components to ensure the highest safety standards in fluid management systems. The reflex glass features precision-molded longitudinal prisms on the side facing the medium, which utilize light refraction to provide a clear, unmistakable indication of liquid levels. Designed with superior borosilicate material, it offers exceptional resistance to thermal shock and chemical corrosion, making it an essential component for refineries, chemical processing plants, and high-pressure boiler systems worldwide.
The Liquid Level Reflex Gauge Glass represents the pinnacle of optical engineering combined with material science. Each piece is crafted from high-stability borosilicate glass, subjected to a rigorous thermal tempering process that significantly enhances its mechanical strength and resistance to internal stresses. Unlike standard sight glass, the reflex design incorporates a series of 90-degree triangular grooves. When light enters the glass from the outside, it is either reflected back by the prisms in the gas space (appearing bright/silver) or absorbed by the liquid (appearing dark/black). This stark contrast eliminates any ambiguity for operators, even in low-light industrial settings.
Beyond its optical performance, the glass is formulated to withstand the punishing conditions of modern industrial processing. It maintains structural integrity when exposed to rapid temperature fluctuations and high-velocity steam. The surface is meticulously polished to ensure a perfect seal against the gauge gaskets, preventing hazardous leaks in pressurized vessels. This focus on craftsmanship ensures that each gauge glass acts as a reliable window into the heart of your infrastructure, providing long-term service life and reducing the frequency of costly maintenance shutdowns.
| Parameter | Specification |
| Material | High-Borosilicate Glass (3.3 or equivalent) |
| Glass Type | Reflex (with longitudinal prisms) |
| Operating Temperature | Up to 280°C (Continuous) / 300°C (Short-term) |
| Working Pressure | 4.0 MPa to 6.0 MPa (Depending on dimensions) |
| Acid Resistance | ISO 1776 - Class 1 |
| Alkali Resistance | ISO 695 - Class 2 |
| Standard Lengths | 115mm, 140mm, 165mm, 190mm, 220mm, 250mm, 280mm, 320mm, 340mm |
| Width | 30mm / 34mm |
| Thickness | 17mm |
| Thermal Shock Resistance | $\Delta$T 230K according to DIN 7081 |
Exceptional Optical Contrast: The precision-molded prisms provide a sharp "black-to-silver" transition at the meniscus, allowing for instantaneous level readings from a distance.
Superior Corrosion Resistance: Specifically treated to resist the etching effects of acidic solutions and alkaline mediums, preserving clarity over extended operational cycles.
Enhanced Mechanical Durability: Through a controlled tempering process, the glass achieves a compressive stress level that far exceeds standard glass, allowing it to contain high-pressure fluids safely.
Precision Sealing Surface: Both the viewing and sealing faces are ground to a flatness tolerance of less than 0.05mm, ensuring a leak-proof fit with standard gauge gaskets.
Thermal Stability: Designed to operate in environments with extreme temperature gradients, preventing spontaneous fracture due to thermal expansion.
Compliance with Global Standards: Manufactured to meet or exceed international safety benchmarks, including DIN 7081 and industry-specific pressure vessel codes.
The foundation of our gauge glass lies in the purity of the borosilicate composition. In industrial environments where sulfuric acid, hydrochloric acid, or caustic soda are present, standard soda-lime glass would cloud and degrade within weeks. Our formulation involves a high silica and boric oxide content, which creates a robust molecular network.
Hydrolytic Resistance: The glass surface remains inert even when in constant contact with high-temperature boiler water, preventing the "milky" leaching common in inferior products.
Stress Distribution: During manufacturing, we utilize advanced polariscopes to verify that internal stresses are uniform, ensuring that the glass will not fail catastrophically under sudden pressure spikes.
Surface Hardness: The glass exhibits high resistance to scratching and abrasion from particulate matter within the fluid stream, maintaining its refractive properties.
The "Reflex" principle is what distinguishes this product from transparent level gauges. It is the preferred choice for colorless liquids like water, oil, and liquid gas.
In the area occupied by gas or vapor, light rays entering the glass strike the 90-degree prisms and are reflected back 180 degrees to the observer. This makes the area above the liquid look like a bright, silvered mirror. In the area occupied by the liquid, the light rays are refracted into the fluid and absorbed, causing the liquid column to appear dark or nearly black.
No Backlighting Required: Unlike transparent gauges that often need a bulky illuminator behind them, reflex glass uses ambient light to create contrast.
Reduced Error: The clear demarcation line prevents "false levels" caused by shadows or reflections on the back of the gauge chamber.
System Simplicity: Facilitates a more compact gauge design, as only one glass element is required per section rather than a front-and-back pair.
Our Reflex Gauge Glass is deployed in critical infrastructure where failure is not an option. Each piece is an integral safety barrier between high-energy fluids and the operator.
Petrochemical Refineries: Used in separator tanks and distillation columns where precise control of liquid interfaces is required for process efficiency.
Power Generation: Installed in steam drum level indicators to monitor water levels, preventing the catastrophic damage associated with "dry fire" or water carryover.
Chemical Storage: Monitoring aggressive chemical reagents where manual dipping or electronic sensors may be prone to corrosion or electrical failure.
Cryogenic Services: Capable of handling liquid gases at sub-zero temperatures when paired with appropriate low-temperature gaskets and housings.
To maximize the service life of the reflex glass, specialized attention must be paid to the installation environment and the components surrounding the glass.
Uniform Bolting Torque: It is imperative that the gauge cover bolts are tightened in a specific sequence using a torque wrench. Uneven pressure is the leading cause of premature glass failure.
Gasket Quality: We recommend using high-quality graphite or fiber gaskets that match the thermal and chemical profile of the glass to prevent "point loading."
Regular Inspection: Operators should look for signs of "thinning" or "clouding" on the prism side. If the silver/black contrast begins to dim, it is an indication of surface erosion, and the glass should be scheduled for replacement.
Protection from External Impact: While tempered glass is strong, it remains sensitive to sharp mechanical impacts. We offer protective shields for environments where external debris may be a factor.
As a dedicated partner in industrial safety, we understand that our products are the last line of defense in your fluid systems. Our manufacturing facility utilizes automated glass-forming technology that ensures every prism is identical, providing consistent optical performance across every batch.
Rigorous Quality Control: Every single piece of reflex glass undergoes a 100% visual inspection and batch-tested pressure verification before shipment.
Material Certification: We provide full traceability and material certificates upon request, ensuring compliance with your internal safety audits.
Global Logistics Expertise: Our packaging is specifically designed to prevent micro-fractures during transit, ensuring that the glass arrives at your facility in pristine condition, regardless of the destination.
Technical Support: Our engineering team is available to consult on custom dimensions or specialized chemical resistance requirements tailored to your specific process conditions.
Clouding is typically the result of chemical etching or leaching. In high-pressure steam or high-pH environments, the glass surface can slowly dissolve. Our acid-resistant borosilicate glass is specifically formulated to significantly slow this process compared to standard glass.
Reflex glass is best suited for gas-liquid interfaces. For observing the interface between two liquids of different colors or densities (like oil and water), a transparent gauge glass is usually recommended, as it allows the observer to see through the fluids.
There is no fixed timeframe, as it depends on the temperature, pressure, and chemistry of the medium. However, replacement is mandatory if you observe any rounding of the prism peaks, significant surface scratching, or if the silver-to-black contrast becomes difficult to distinguish.
No. Because the glass is thermally tempered, any attempt to cut, grind, or drill it will cause the internal stresses to release, resulting in the glass shattering into small pieces. All custom sizing must be done before the tempering process in our facility.
Our borosilicate reflex glass can withstand a sudden temperature change ($\Delta$T) of up to 230K. This means it can handle a rapid shift from cold to hot (or vice versa) without cracking, provided the change is within its specified operating temperature range.
